4x LED recessed spotlight - 12V - 5 watt - 61mm - complete set
Additional options:
4x LED recessed spotlight - 12V - 5 watt - 61mm - complete set
With this complete DIY Plug & Play kit, you can easily create your own garden or driveway lighting. Everything you need is included; all you have to do is choose whether you want to add extra cable or replace the power supply with a waterproof IP67 version.
Contents of this set (4 recessed spotlights)
-

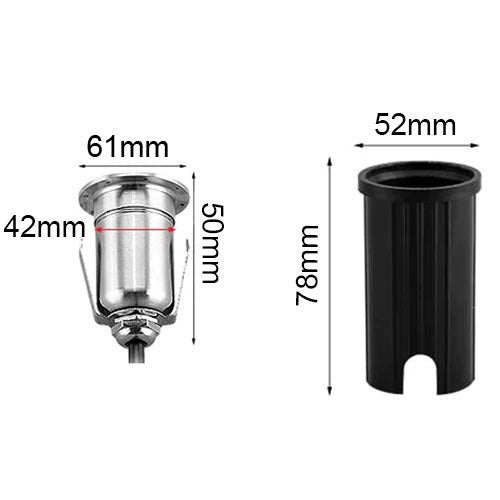

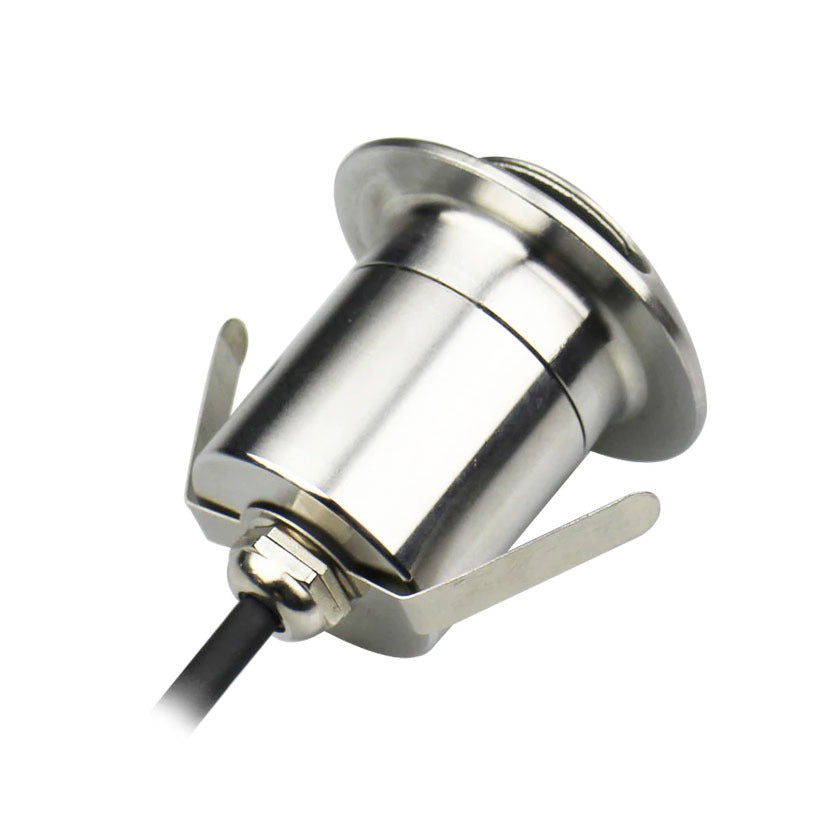

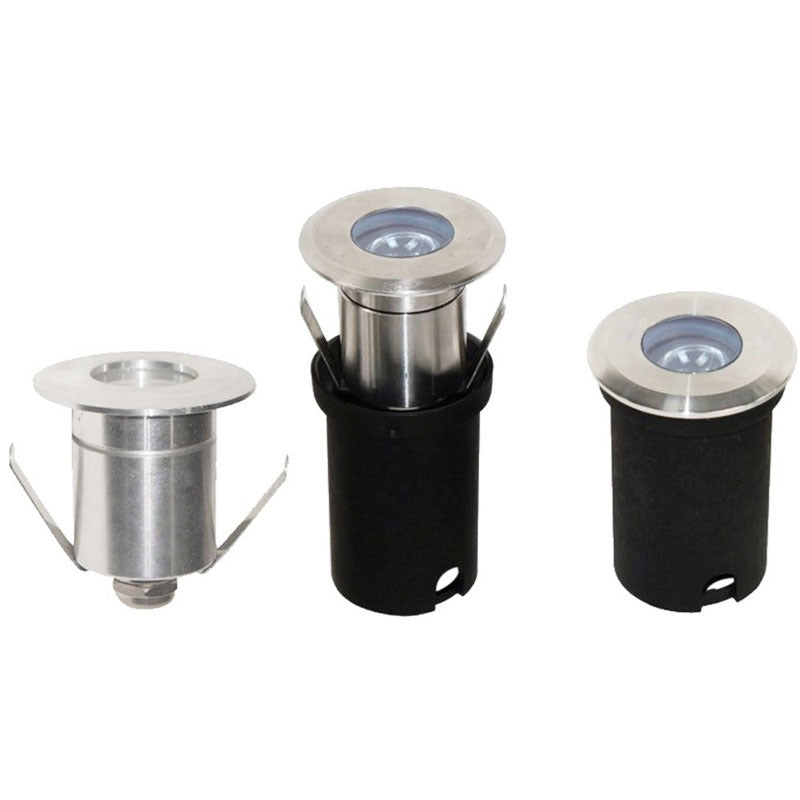

4x LED recessed spotlights – 5W - 61mm Warm White (2800–3000K)
-
2x straight connector – for power → first spot and for the last spot
-
3x T-connector – for the spotlights in the middle
-
1x indoor power supply IP20 (with plug) – optionally changeable to IP67 waterproof
-
5 meter ground cable – optionally expandable, supplied in one piece
Everything is equipped with waterproof connectors , so you can connect the set safely and easily.
Optional
-
Extra cable – simply choose extra meters, supplied in one piece so you can cut it to size yourself.
-
Change power supply – replace the standard IP20 power supply with an IP67 waterproof version, suitable for outdoor use.
Why choose this set?
✔ Complete package – get started right away
✔ Warm white light (2800–3000K) for an atmospheric appearance
✔ Waterproof connectors and safe installation
✔ Plug & Play – easy to install yourself
✔ Expandable with an extra cable or waterproof power supply
With this complete set, you can easily connect your garden lighting. Follow the steps and use the diagram as a guide.
Step 1 – Install the recessed spotlights
-

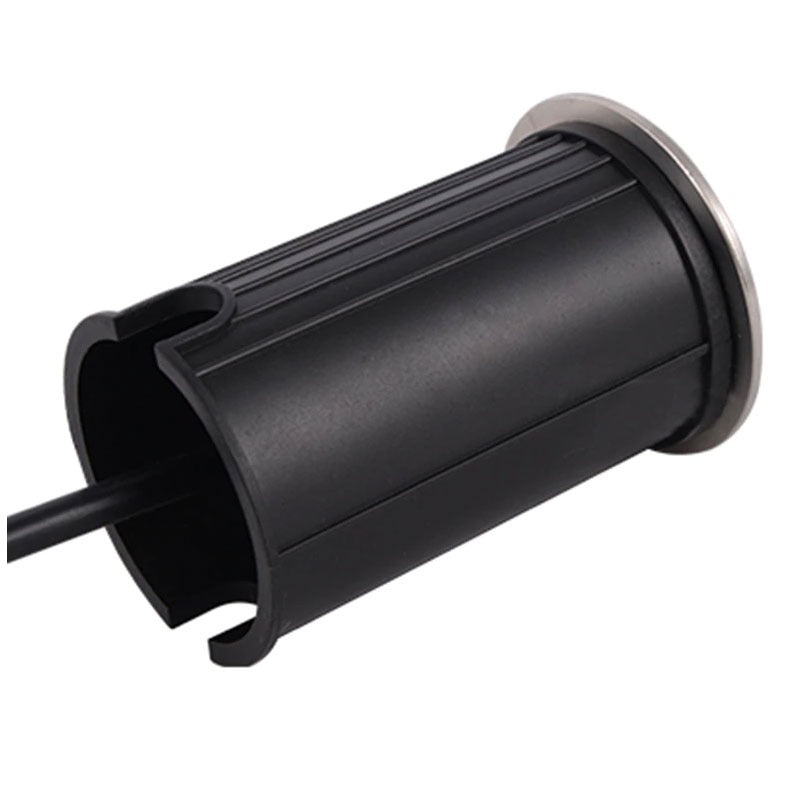

Each recessed spotlight has a sleeve for mounting in the ground.
-
You can place these and push the recessed spotlights into place later.
-
Do not yet permanently secure the recessed spotlights so that you can easily connect them.
Step 2 – Prepare cables and connectors
-
Unroll the cable and cut to the desired lengths.
-
Connect the cables with the supplied connectors:
-
Right start : power supply → first recessed spotlight
-
T-connectors : between the recessed spotlights
-
Straight end : last recessed spotlight
-
Step 3 – Connect power
-
Indoor power supply (IP20): directly into the socket indoors or in a dry place.
-
Outdoor power supply (IP67): suitable for direct outdoor installation
-
Connect the power supply using the first straight connector.
Step 4 – Testing
-
Turn on the power and check if all spotlights are working.
-
Tighten all connectors securely for a watertight seal.
Step 5 – Final placement
-
Push the recessed spotlights into their sleeve.
-
Neatly conceal cables in the ground or along the paving.
