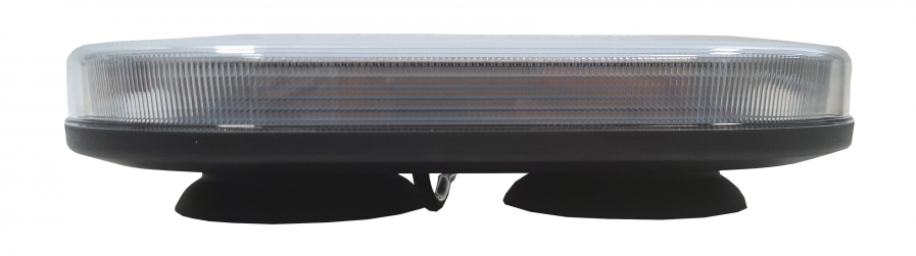

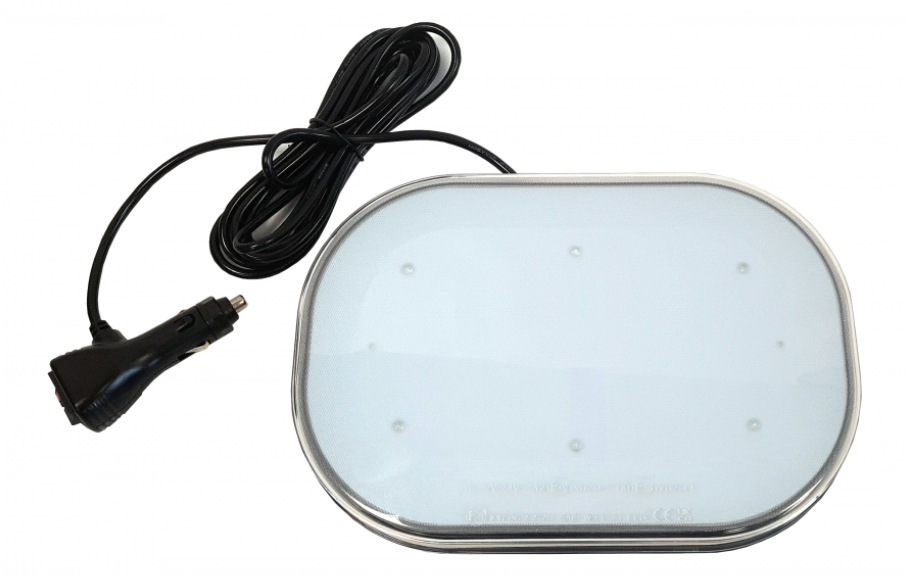

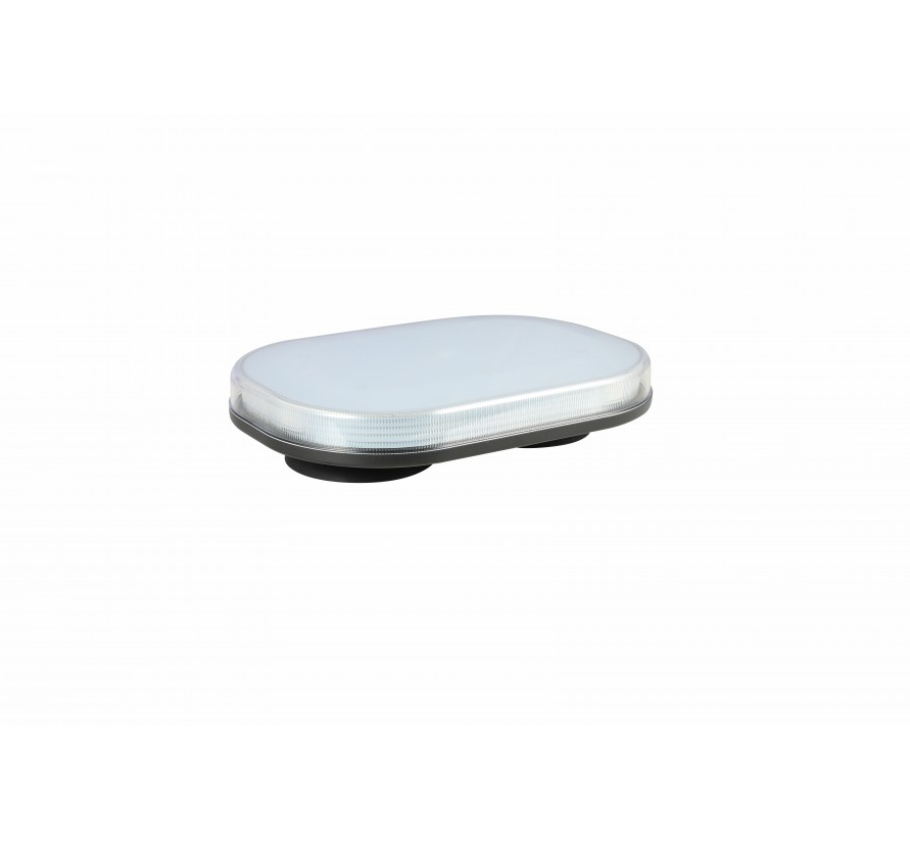

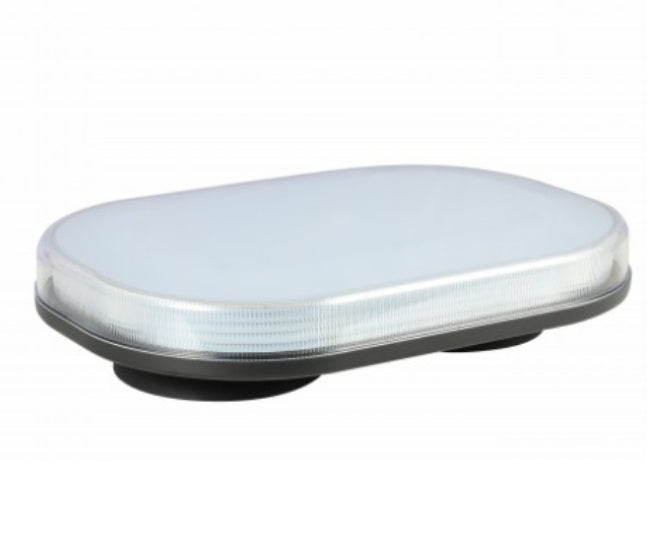

LED Roof Rotating Beacon R10/R65 - 60 LED – 248 x 171mm - Magnet - Orange

LED Roof Rotating Beacon R10/R65 - 60 LED – 248 x 171mm - Magnet - Orange

This powerful LED warning light is designed for use on service, emergency, or commercial vehicles. Its compact size and strong magnetic mount allow it to be quickly and securely mounted on metal surfaces. Thanks to its bright flashing patterns and 60 high-quality LEDs, it provides excellent visibility, situational awareness, and safety. UL certification and ECE standards ensure reliability and legal compliance.

Key Features

• Compact & robust design : dimensions of 248 x 171 x 37 mm, ideal for vehicles and mobile use

• 60 powerful LEDs with 3 flash modes : multiple warning patterns for different situations

• Achievable light output of 53W : provides a clear and eye-catching signal

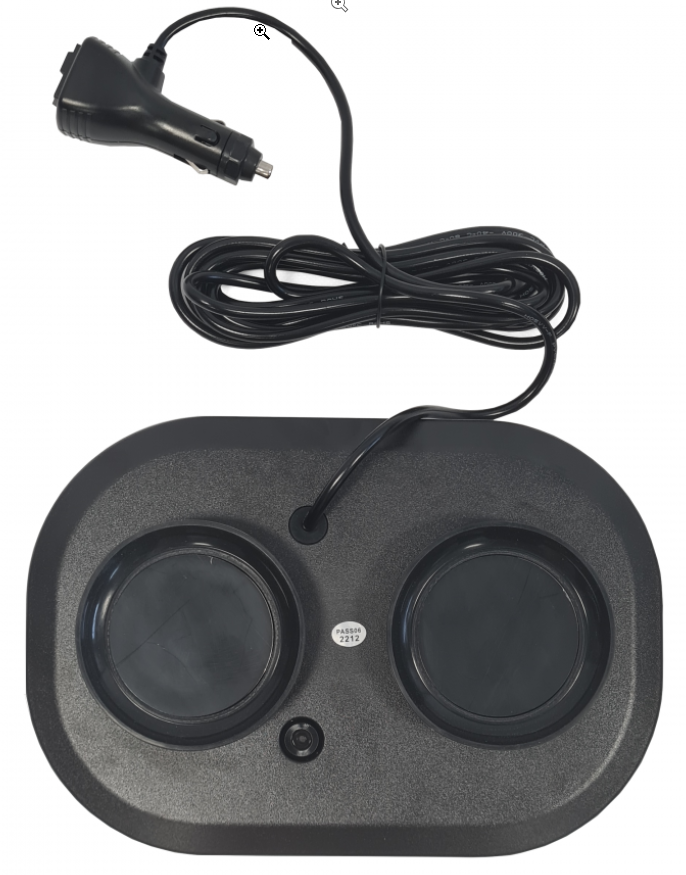

• Magnetic mounting : quick and secure mounting on metal surfaces

• Suitable for 12/24V systems : universally applicable on various vehicles

• Robust plastic housing (PC lens + housing) with ECE approval: resistant to weather and intensive use

Specifications

• Dimensions (L×W×H): 248 × 171 × 37mm

• Number of LEDs: 60

• Power: 53W

• Voltage: 12V / 24V

• Flash modes: 3 different patterns

• Mounting: strong magnet

• Housing/lens material: polycarbonate

• Certification: ECE approved (R65/R10)

• Weight: approximately 3kg

R10
ECE R 10 INTRO What is EMC (ECE-R 10) Electromagnetic compatibility (EMC) is a quality characteristic of optical signalling systems and indicates two factors: Interference emission: limitation of the emission of electromagnetic interference to a level that allows interference-free operation of other equipment in the vicinity Interference resistance: ensuring sufficiently high resistance to external electromagnetic interference The legal basis for this is provided by CISPR 25 and ISO 7637 and 11452.

R65
ECE R 65 Light distribution according to ECE-R65 (E-marking) According to the ECE-R65 regulations, rotating beacons must be designed so that they continue to function smoothly during normal use, despite any fluctuations that may occur, and that they retain the properties prescribed in this regulation. It is important that the rotating beacon is designed so that it cannot be moved after proper installation on the vehicle. Incorrect installation can impair the warning effect. The light values ​​are measured at a distance of at least 25 m. For all lamps not equipped with incandescent bulbs as the light source, the measured light intensities must meet the minimum and maximum requirements after one minute and after 30 minutes. This illustrates the importance of thermal management in LED rotating beacons, because only through optimal temperature control can optimal light values ​​be guaranteed, even during extended use. A rotating beacon must be mounted on the vehicle in such a way that the warning signal is recognizable from any position within a distance of 20 m. If this is not possible, additional warning systems (e.g. additional flashing lights) must be fitted to the vehicle.

Final remark

This LED warning light is the ideal solution when rapid deployment and maximum visibility are required. Thanks to its compact size, multiple flash patterns, and strong magnetic mounting, it's suitable for a wide range of applications, such as roadside assistance, roadside inspection, events, and more.
