Surface-mounted Junction Box IP68 - 4-way - Impact-resistant and Flame-retardant
Surface-mounted Junction Box IP68 - 4-way - Impact-resistant and Flame-retardant
Product description

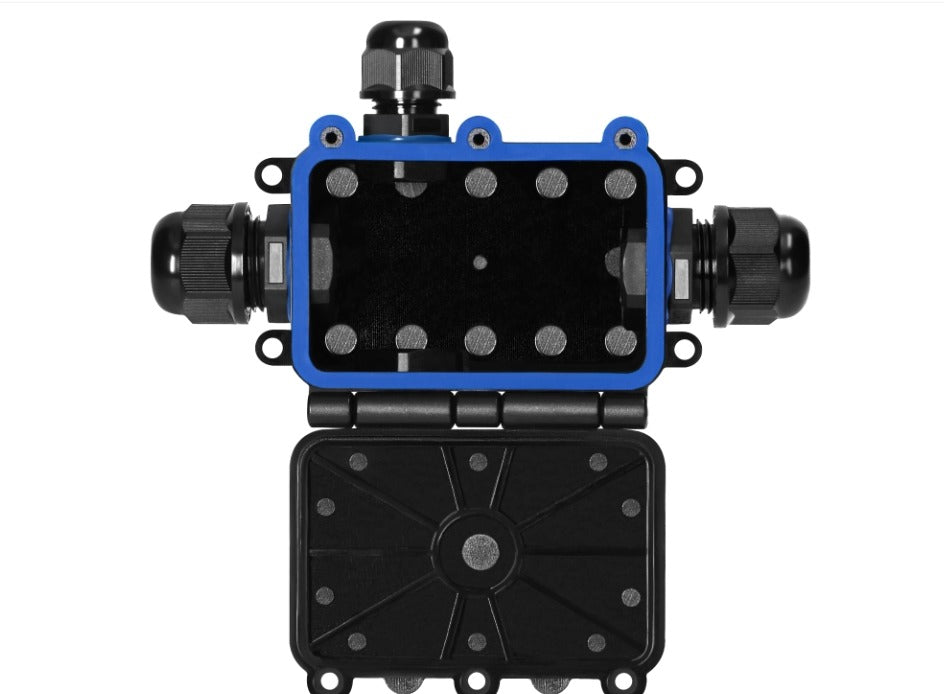

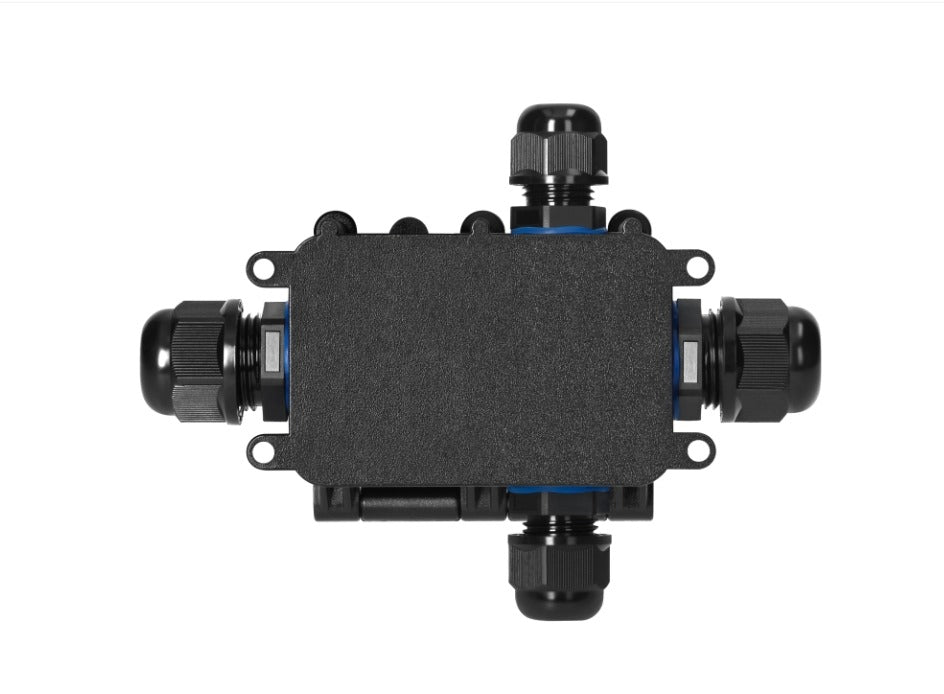

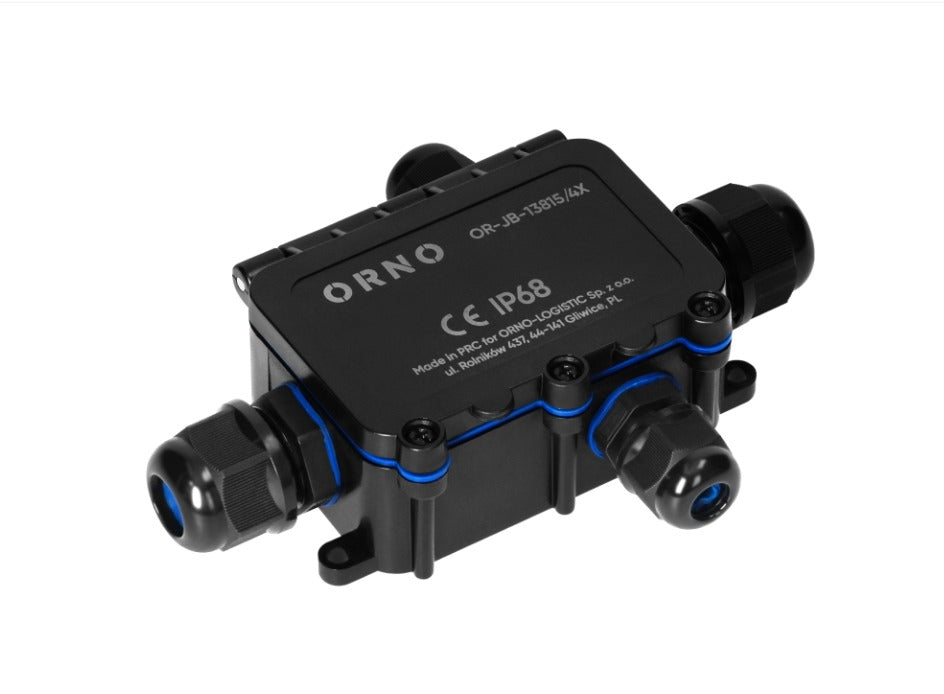

This X-shaped surface-mounted junction box with IP68 protection is designed for safely connecting, distributing, and protecting electrical wiring in both indoor and outdoor applications. Its fully waterproof and dustproof construction makes the junction box ideal for use in damp or demanding environments such as gardens, garages, workshops, homes, or underground installations.
The enclosure is made of impact-resistant and UV-resistant thermoplastic (PC/PA66) and complies with the IK09 shock resistance and UL94 V2 flame retardant standards . The junction box is equipped with four cable gland entries – 2x M20 (Ø 7–12 mm) and 2x M16 (Ø 5–10 mm) – allowing for easy connection of various cable thicknesses.

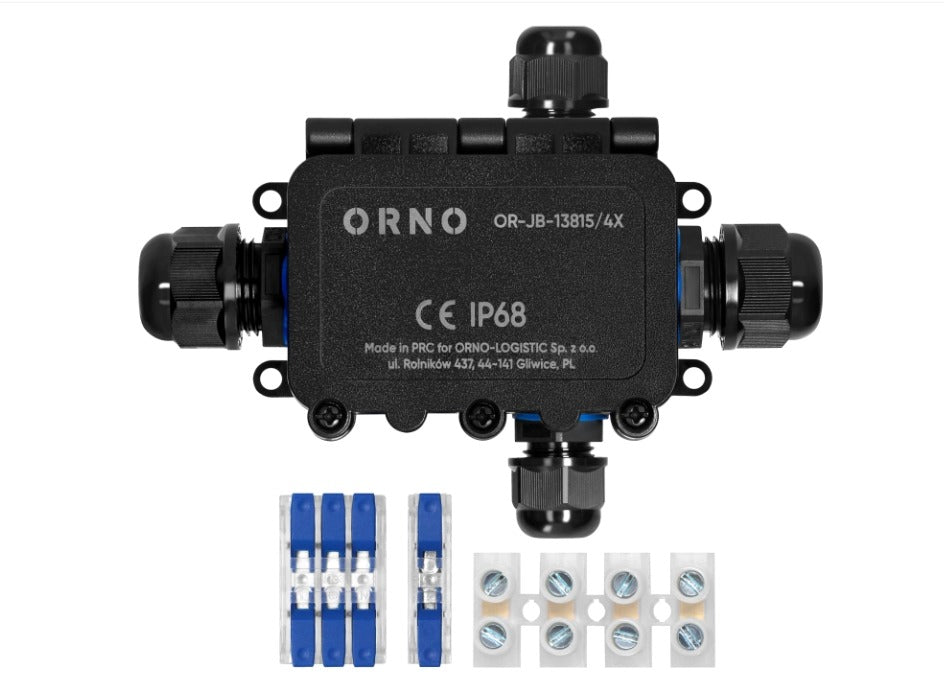

The integrated quick connectors (1x 3-pin and 1x 1-pin, both sides) ensure a fast, reliable connection. A classic screw connector is also included for extra-secure connections. Thanks to the high-quality silicone seals, the enclosure remains watertight and dustproof for extended periods, even when mounted underground.
Special features
The junction box combines professional IP68 waterproofness with wear-resistant industrial material , ensuring high reliability in electrical installations – both indoors and outdoors.
Specifications
-
Type: X-shaped surface-mounted junction box
-
Protection class: IP68 – completely waterproof and dustproof
-
Material: PC/PA66 (thermoplastic), UV-resistant
-
Impact resistance: IK09
-
Flame retardant: UL94 V2
-
Cable glands: 2x M20 + 2x M16
-
Suitable cable diameters: Ø 5–10 mm (M16) / Ø 7–12 mm (M20)
-
Dimensions: 82 x 69 x 39 mm
-
Color: Black (RAL 9005)
-
Quick connectors: 1x 3-pin & 1x 1-pin (0.75–4 mm²)
-
Can be installed underground: Yes
Usage tips
-
Always check the correct cable diameter before installation for optimal sealing.
-
Use silicone grease on the rings for extra protection during long-term outdoor installation.
-
Tighten the glands evenly to maintain IP68 tightness.
Application examples
-
Garden and outdoor lighting
-
Garages and workshops
-
Water pumps or pond installations
-
Underground cable connections
-
Electrical connections in damp rooms
